Features of Carbon-separating screen

This product is installed in the carbon-immersing tank, with the function of separating the ore pulp from the activity

Notes for Selection

Please specify the model and quantity, as well as the model and material of screen cloth while placing your order. If there is no special requirement, we will make the screen in accordance with the manufacturer's drawings.

We can design and make the screen as per the customer's special requirements.

Technical parameter list of carbon-separating screen

Features of  Multi (wash) thickener:Multi wash thickener is mainly used in the washing proces in gold cvanidation plant, With multi-stage countercument washing, it can work continuously. Its features: reliable running, convenient management, low dynamic power, and reducing foor space required greatly.

Notes for model selection：

Usually, concrete tank is adopted. If the tank lined with steel plate is required, we can provide drawings according to thecustomer's demands, and the customer shall make the tank by himself at the field.

Technical parameter list of multitray(wash) thickener：

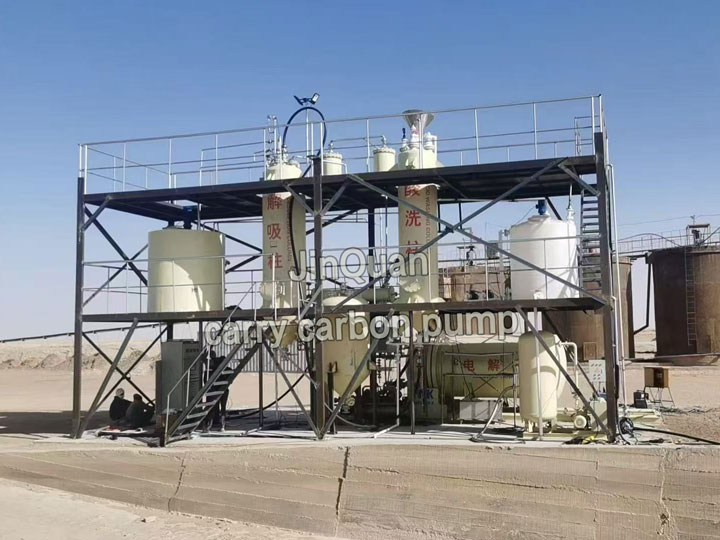

Features of carry carbon pump:This product is a kind of special equipment designed for lifting the activated carbon with gold from carbon-immersingtank during absorbing and refining the gold with carbon.It has a scientific structure and small damage to the carbon.

Air elevator(Carry Carbon Pump)Technical parameters

Note: The length of suction pipe may be different according to different size of leaching tank

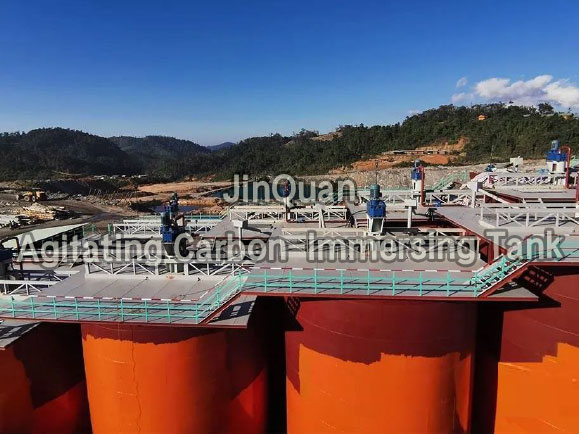

Features of Dual impeller high-efficient agitating carbon-immersing tank:

This product is used in carbon paste flow and cyanidation process. The carbon-immersing tank should match other auxiliary devices like carbon-separating screen, and recessed impeller pump, etc. Its structural features:the upper and lower layer of impellers are of steel plate encapsulated with rubber, which are connected by means of bolts, with the features like good equilibrium, easy replacement, and long service life. The main shats are divided into the upper layer and the lower layer, which areconnected by means of locating flanges, able to reduce the lifting height; inlate at several points dispersingly, with good air mixing performance.

Notes for Selection:

Planet cycloid reducing motor is usually adopted for driving, with the features like simple structure and low price. If gear wormdrive is required, please order it specially and specify it.

Technical parameter list of Dual impeller high-efficient agitating carbon-immersing tank

Features of deoxygenation tower:

Deoxygenation tower is a kind of vacuum deoxidation equipment used for eoxygenating before cyanidation pregnant solution displacement. It is equipped with spray thrower and leveling device. A batten grid structure is adopted for its packing layer, with good and hesivity anddeoxygenation effect better than that of plastic packing.

Notes for Selection:

It doesn't include a vacuum device.

Technical parameter list of Deoxygenation tower

Features of desorption electrolysis equipment complex：

Desorption electrolysis equipment complex is a kind of key equipment in the cyanidation carbon-in-pulp gold refining process in gold mines. lt is a kind of integral equipment complex consisting of electric heater, desorption post, heat exchanger, whole electrolytic bath, and pump, with the features like compact structure, convenient installation, desorption rate reaching 96% and over, and electrolysis rate more than 99%.

Notes for selection：

We can design and make the products of different specifications according to the customer’s requirements.

Technical parameter list of movable desorption electrolytic equipment：
